YPS design, build and configure a range of high voltage e-beam power supply units (PSUs) to function with Field Emission (FE) based systems. The 30kV PSU is offered by YPS as a standard product. Please contact us to discuss requirements for 50kV and 100kV PSUs. PSUs are designed to endure high stability and ultra-low ripple, ensuring consistent operation. A PC-based interface connected via a fibre optic link provides remote control and high-speed monitoring for full integration into an FE-based system. The 16-bit DAC and ADC in the modules enable high resolution for control and monitoring.
Features
- Remote high voltage supply for beam energy
- Supplies for FE tip heating and extraction field
- Supply for suppression of thermionic emission
- Supply for focus control
- Fibre optic link to Field Emission Assistant
- Specially designed 40kV rated cable with discharge management
- Cable and vacuum interlocks
- Modularised for functions in field emission systems

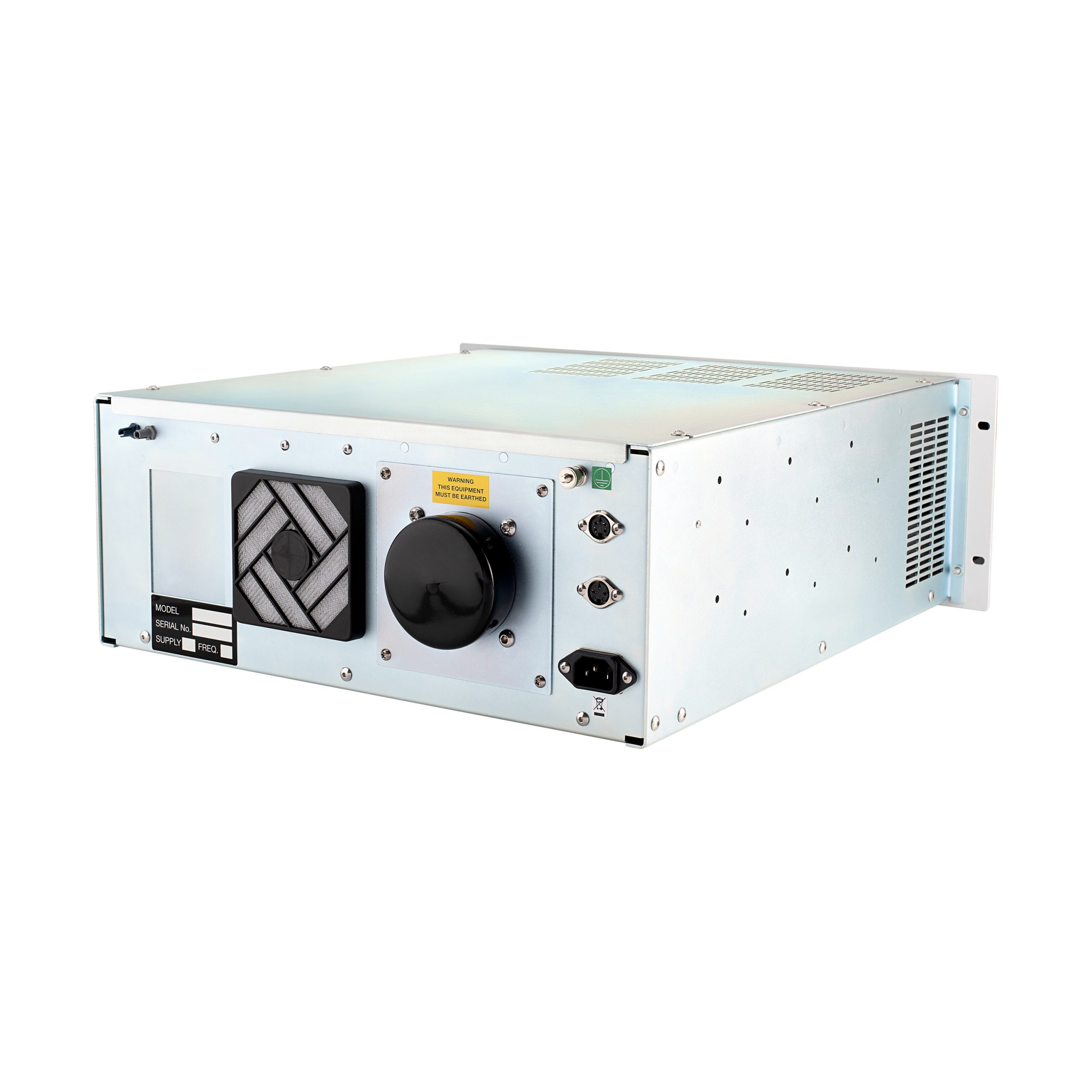

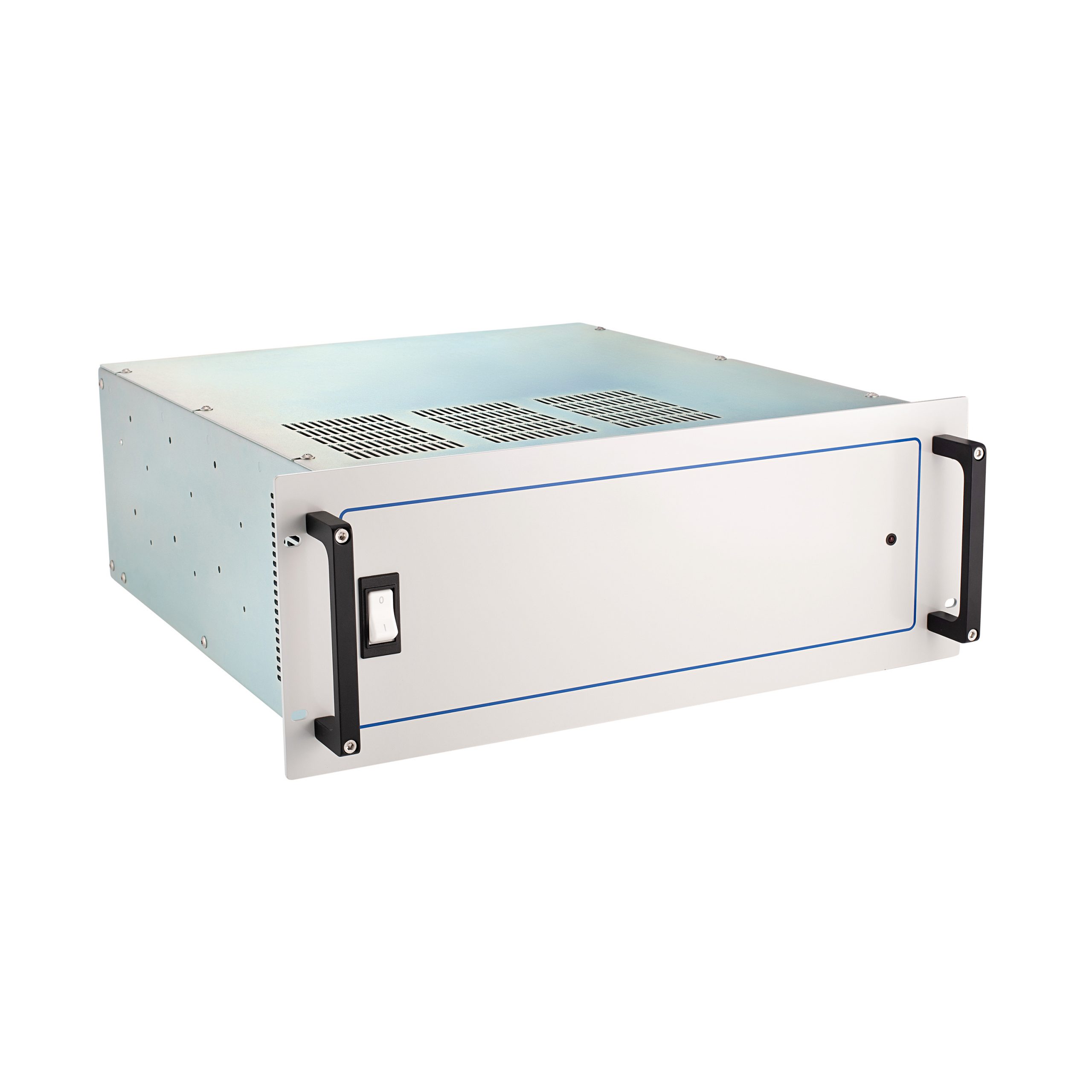

30kV High Voltage E-Beam Power Supply
Technical Specifications
Input Voltage | 115V or 240V AC switchable |
Size | 4U for 19″ rack |
Control Interface | Optical serial communication 30 Hz Individual and 5 Hz complete control rate |
Interlocks | Cable and vacuum |
Output | EHT | Filament | Suppressor | Extractor | Lens |
---|---|---|---|---|---|
Max Output | 30,000 V 20 µA | 2.75 A | -350 V 60µA | 7,500 V 350µA | 5,100 V 80µA |
Ripple | 100 mV pp @ 30,000 V | 1.5 mA pp @ 2.5 A | 5 mV pp @ 300 V | 100 mV pp @ 7,000 V | 30 mV pp @ 5,000 V |
Stability | 0.01% per hour @ 5,000 V | 0.01% per hour @ 2.75 A | 0.005% per hour @ 350 V | 0.005 % per hour @ 7,500 V | 0.01% per hour @ 5,000 V |
